In the old time, the Tube Mill friction / hot saw unit using friction circular saw blade, the heat produced from saw blade cutting, will be passed to pipes, cutting parts. It will cause high temperature saw blade and pipes, which will be harmful for human. Also, during the friction cutting, there will be fire flame during the hot cut process. Finally, the cutting surface is no smooth, but with burrs.
Now, The Tube mill Flying Cold Saw Cut Off, seams like the milling saw unit, Saw blade running speed is lower than hot friction saw. Pipe surface has no deformation or burrs, no need to use end-facing machine line to remove the burrs. We can finish these job by on-line production. Flying Cold Saw machine can save workload time and labor force, without spark, low noise, high safety, high production efficiency and high quality steel pipes. Help our dear customer reduce the labor cost, reduce the edge-reprocessing machine cost, and improve the productivity and economical performance.

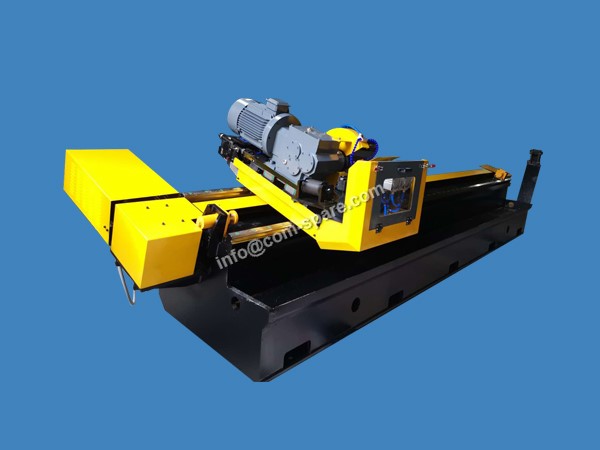

Still, we have high speed MR25 high speed flying cold saw cut off for small length tubes on line cold cutting process. The fixed tube length is 2805mm, online speed is 80m/min, and max speed can reach 90m/min. The customer is so happy to see the running condition, it help him to save 1 process to cut the 6m tube into pieces. This machine unit helped our customer saved a lot of cost and saved the factory space.
Product Features
Main configuration of our Cold Flying Saw
1) Easy in installation and maintation, our Engineer visit site help to install and teach how to use.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Lower noise, burr-free cutting, more safety for operator, save costs and material.
4) Running in a high automatization and intellectualization,no pollution
5) New Function: Remote Control system, solve problem in time
Checking the video for MR 25 High Speed Flying Cold Saw Cut Off
Why choose the MR 25 High Speed Flying Cold Saw Cut Off ?
Product Parameters
| MAIN TECHNICAL PARAMETER ABOUT HIGH SPEED MR 25 High Speed Flying Cold Saw Cut Off | ||||||||||
| Standard Flying Cut Off: | MR25-B | MR25-G | MR25-Z | |||||||
| Round Pipe Size Range: | Φ8~Φ25 | mm | Φ8~Φ25 | mm | Φ8~Φ25 | mm | ||||
| Square Pipe Size Range: | 20*20 | mm | 20*20 | mm | 20*20 | mm | ||||
| Rectangle Pipe Size Range: | 15*25 | mm | 15*25 | mm | 15*25 | mm | ||||
| Steel Pipe Thickness Range: | 0.5~1.5 | mm | 0.5~1.5 | mm | 0.5~2.3 | mm | ||||
| Specified Length Range: | 3-12 | m | 3-12 | m | 3-12 | m | ||||
| Production Line Max Speed: | 120 | m/min | 150 | m/min | 100 | m/min | ||||
| Moving Cart Motor Power: | 11 | kw | 15 | kw | 11 | kw | ||||
| Feeding Motor Power: | 1.3 | kw | 1.3 | kw | 1.8 | kw | ||||
| Saw Blade Cutting Power: | 5.5 | kw | 5.5 | kw | 7.5 | kw | ||||
| B=Nomal, G=High Speed, Z=Heavy; More support, please contact: info@com-spare.com | ||||||||||
